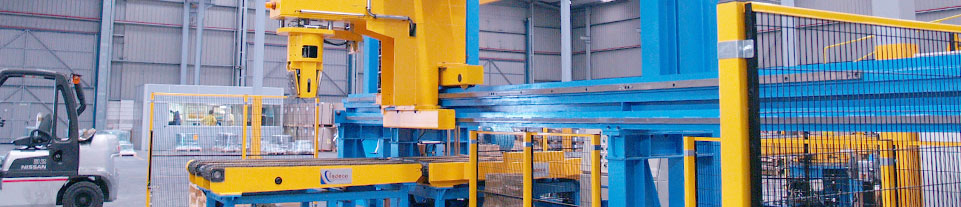

  • Packaging and stacking line
    Packaging and stacking line

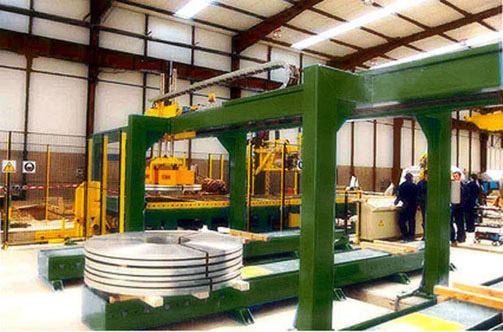

  • Packaging & Stacking Line up to 5 t. coils.
    Packaging & Stacking Line up to 5 t. coils.
  • Packaging & Stacking Line up to 5 t. coils.
    Packaging & Stacking Line up to 5 t. coils.

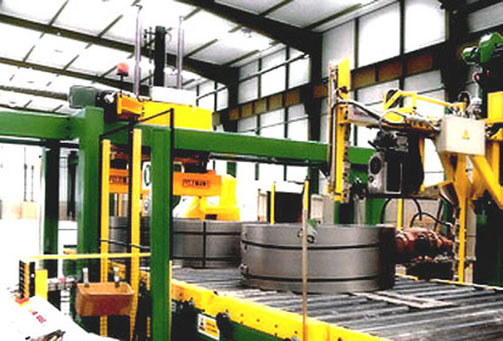

  • Packaging and stacking line
    Packaging and stacking line
  • Coil up and downender machine (Sequence 1).
    Coil up and downender machine (Sequence 1).

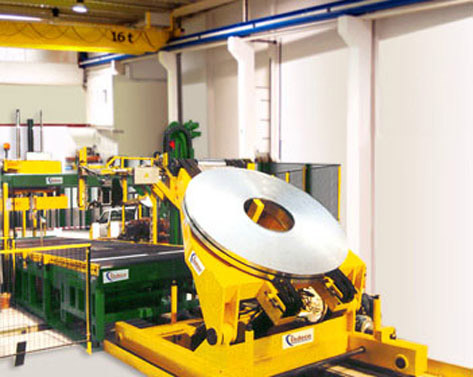

  • Coil up and downender machine (Sequence 2).
    Coil up and downender machine (Sequence 2).

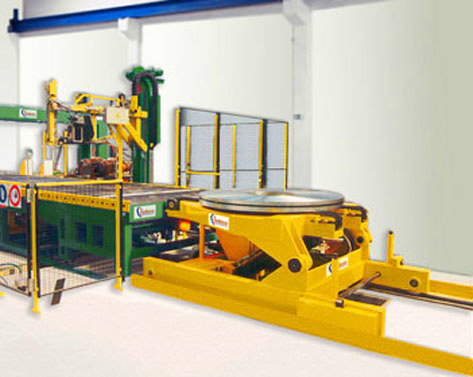

  • Coil up and downender machine (Sequence 3).
    Coil up and downender machine (Sequence 3).

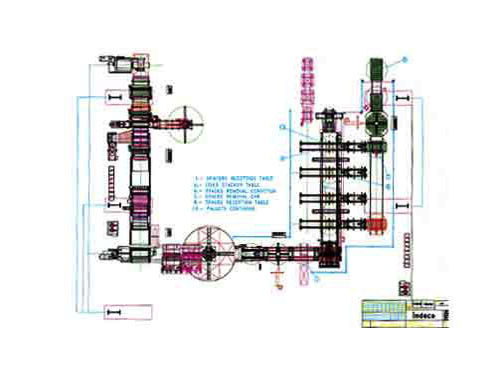

  • Draw of Packaging & Stacking Line up to 5 t. coils.
    Draw of Packaging & Stacking Line up to 5 t. coils.

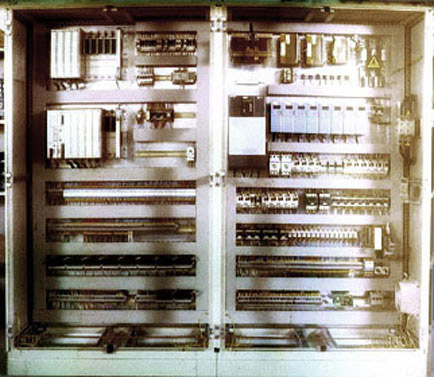

  • Packaging Line Control Board.
    Packaging Line Control Board.

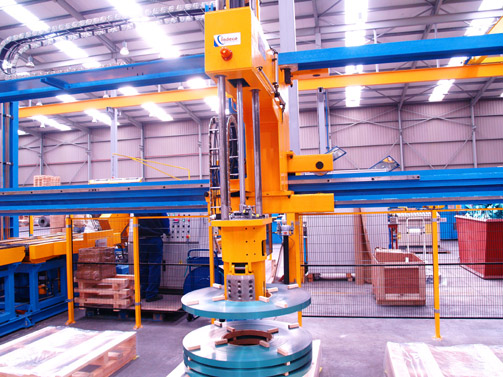

  • Detail of Coils outlet and stacking area on Pallet.
    Detail of Coils outlet and stacking area on Pallet.

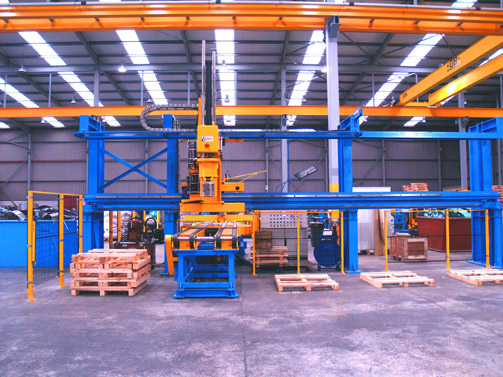

  • Coils outlet and stacking area on Pallet.
    Coils outlet and stacking area on Pallet.

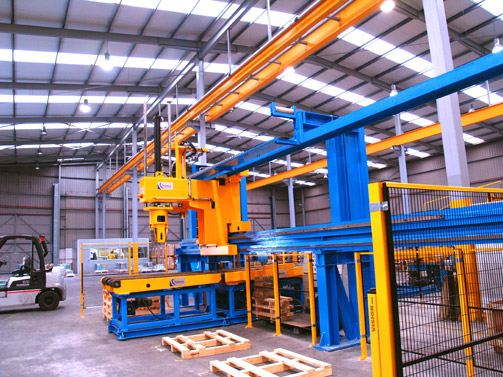

  • Detail of Coils outlet and stacking area on Pallet.
    Detail of Coils outlet and stacking area on Pallet.

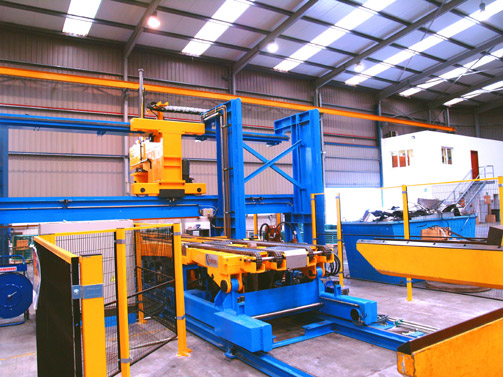

  • Slitter Capstan & Coil Downender unit.
    Slitter Capstan & Coil Downender unit.
  • Coil Downender machine.
    Coil Downender machine.

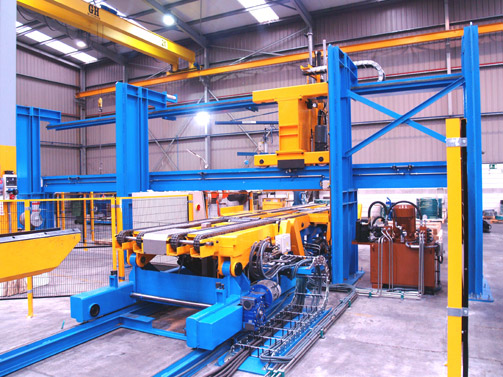

  • Coils inlet area.
    Coils inlet area.

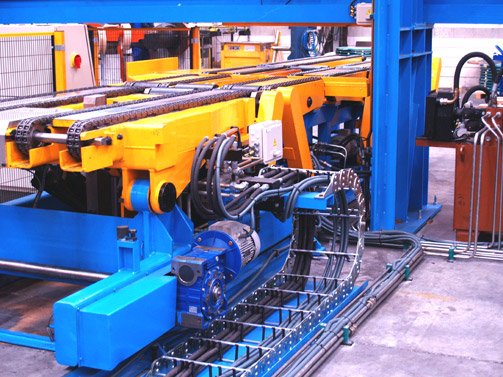

  • Coil Downender machine on Vertical arrangement.
    Coil Downender machine on Vertical arrangement.

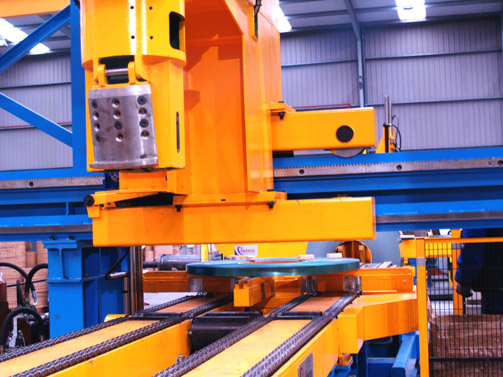

  • Strapping area for coil and manual feeding of Splitters.
    Strapping area for coil and manual feeding of Splitters.

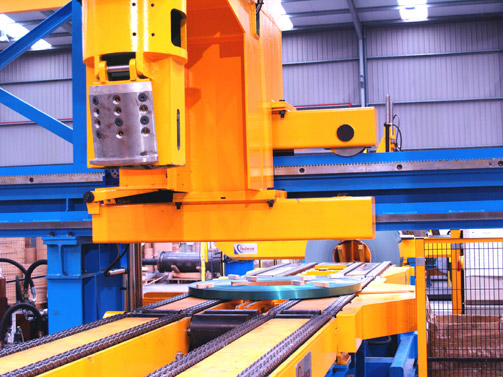

  • Chain conveyor of outlet of coils.
    Chain conveyor of outlet of coils.

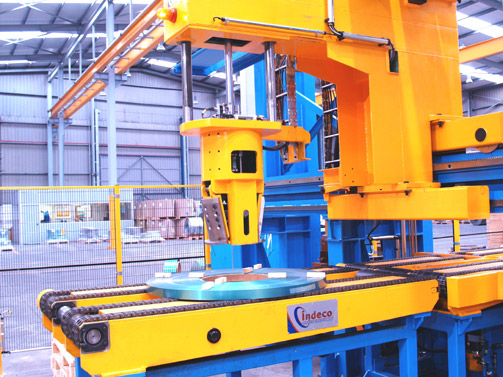

  • Coil arrangement area.
    Coil arrangement area.

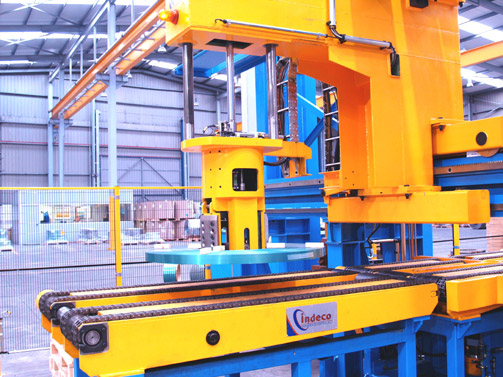

  • Coil pick-up Robot.
    Coil pick-up Robot.

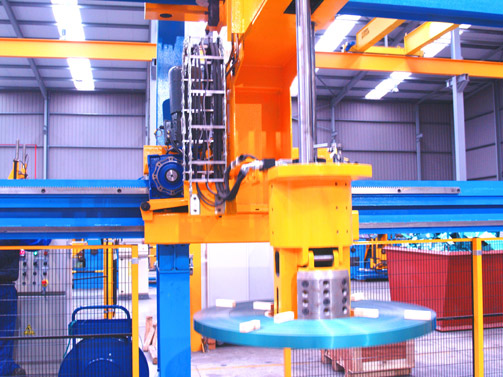

  • Detail of Coil shift by Robot.
    Detail of Coil shift by Robot.

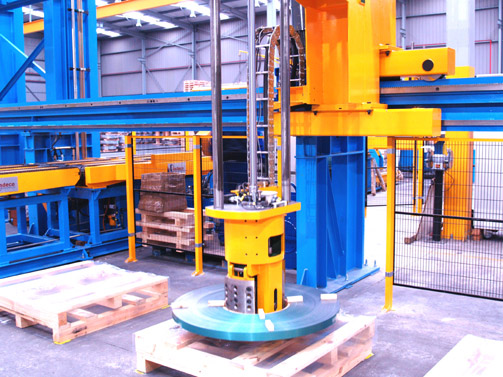

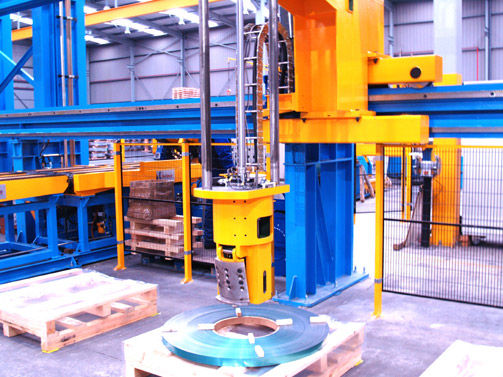

  • Detail of Coil positioning on the Pallet.
    Detail of Coil positioning on the Pallet.
  • Detail of Coil positioning on the Pallet.
    Detail of Coil positioning on the Pallet.

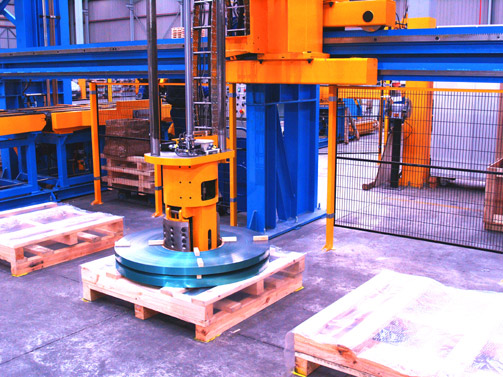

  • Detail of coils stacking.
    Detail of coils stacking.

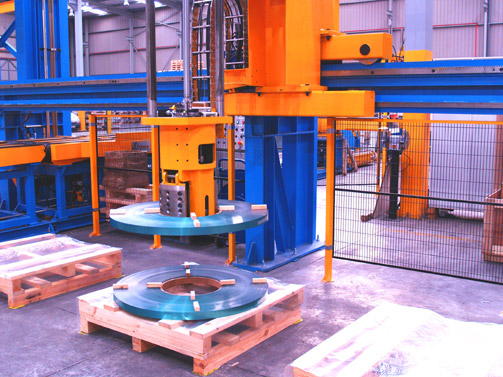

  • Detail of coils stacking.
    Detail of coils stacking.
next

Download video [ WMV 94.77 MB ]

CIMISA's Packaging and Stacking Lines.
Line parameters:
Single and double head strapping.
Coil outside diameter up to 2200 mm.
Standard inside diameters of 508 and 610 mm.
Max. output of 75 rings per hour (double head).
Coil weight up to 5 t.
Carbon steel, stainless steel, aluminium.
Non ferrous metals and alloys.
Cold rolled, hot rolled, pickled, Galvanized, any coating.
High Production Rates With:
Coil car with or without coil retainer.
Turnstile in one, two or four configuration.
Manual, semi-automatic or automatic downenders and coil upenders.
Single and double head strapping machines.
Strapping fastener material up on request.
Automatic pallet feeding.
Automatic spacer insertion for coils stacking.
Automatic scale with printer system.
Interface with slitter or cut to length line.
Magnetic, vacuum or mechanical coil stacking systems.
Custom taylored high-medium-low of automation requirements. Modem on-line teleservice.
Coil packaging:
Without production interruption.
Circumferencial banding on recoiler.
Customised packaging line lay-out.

Coil up and downender machine

  • Machine structure fabricated on carbon steel, machined and assembled on motor operated rollers for displacement.
  • Top table with lifting and tilting motions equipped with motorized chains for coils output to the main rolling conveyor. There is a claw type device to pick up the coil from inside diameter. "Claw" with programmed stroke motion, according to slit coil width dimension.
  • Vertical motion of "claw" device to fit several inside diameters of coils, operated by means of hydraulic cylinder.
  • Control of coil presence and coil conveying by means of photocells system.
