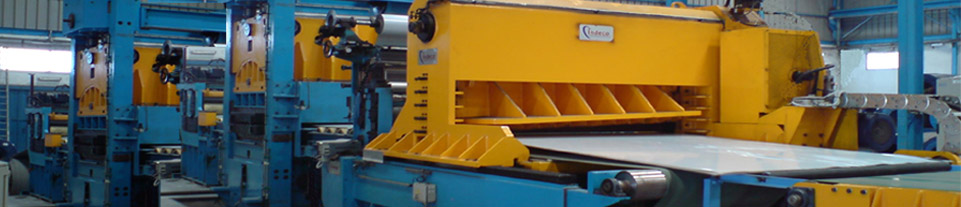

High Production Cut to Length HPC type

Previous

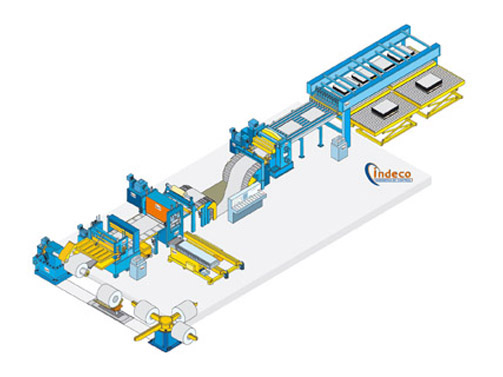

  • Cut to Length Line and Stacking
    Cut to Length Line and Stacking

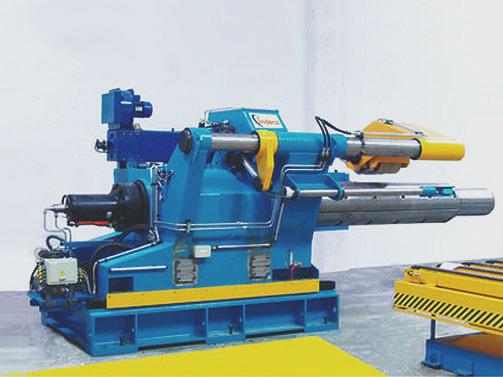

  • Hydraulic Decoiler for 40t. weight x 2000 mm x 10 mm. For Stainless Steel
    Hydraulic Decoiler for 40t. weight x 2000 mm x 10 mm. For Stainless Steel

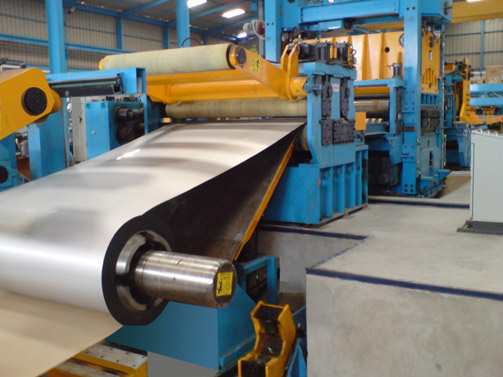

  • Decoiler & Inlet area of Cut to Length Line for Stainless Steel strip of 2000 x 12 mm
    Decoiler & Inlet area of Cut to Length Line for Stainless Steel strip of 2000 x 12 mm

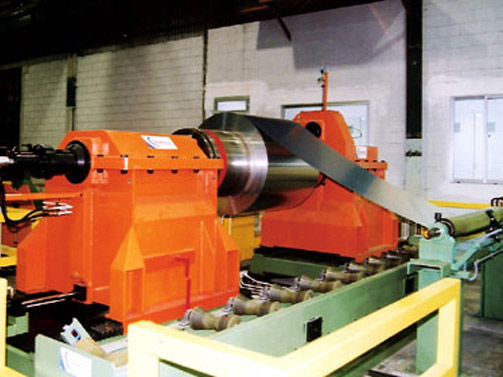

  • Decoiler for Aluminium Cut to length Line
    Decoiler for Aluminium Cut to length Line

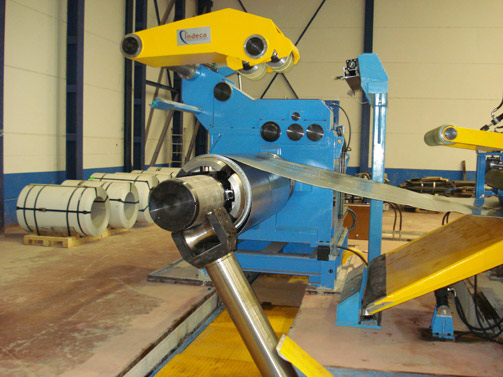

  • Decoiler & Peeler for strip of Stainless Steel of 2000 x 3 mm
    Decoiler & Peeler for strip of Stainless Steel of 2000 x 3 mm

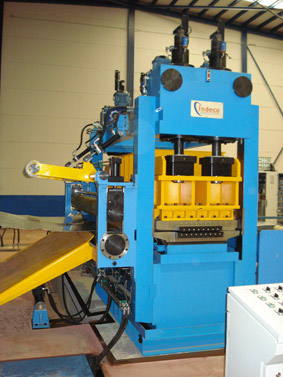

  • Precision Leveller machine of 3+3 highs for 2000 x 3 mm
    Precision Leveller machine of 3+3 highs for 2000 x 3 mm

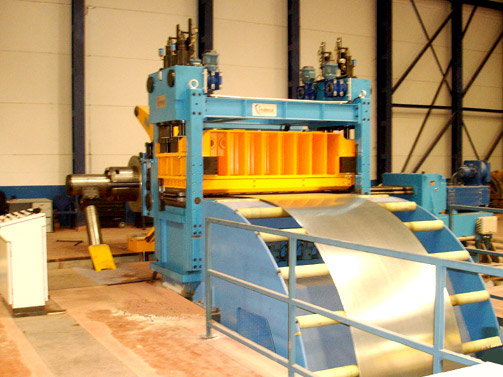

  • Precision Leveller machine of 3+3 highs for 2000 x 3 mm & Exit Basket
    Precision Leveller machine of 3+3 highs for 2000 x 3 mm & Exit Basket

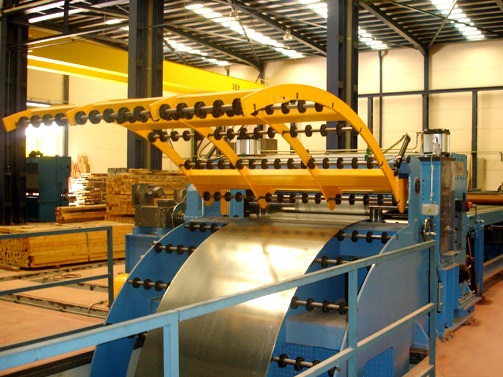

  • Outlet Basket for 2000x3 mm
    Outlet Basket for 2000x3 mm

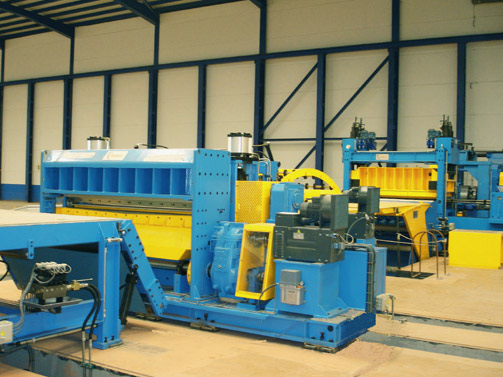

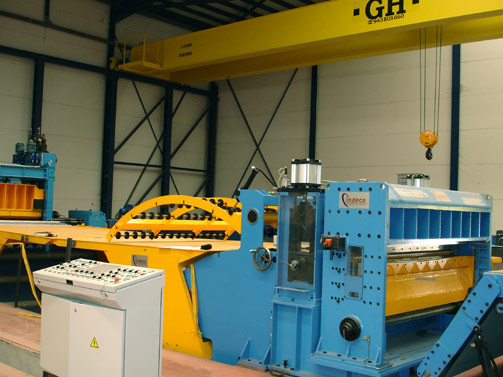

  • High Speed Electronic Shear (90m/min) for 2000x3 mm
    High Speed Electronic Shear (90m/min) for 2000x3 mm
  • High Speed Electronic Shear (90m/min) for 2000x3 mm
    High Speed Electronic Shear (90m/min) for 2000x3 mm

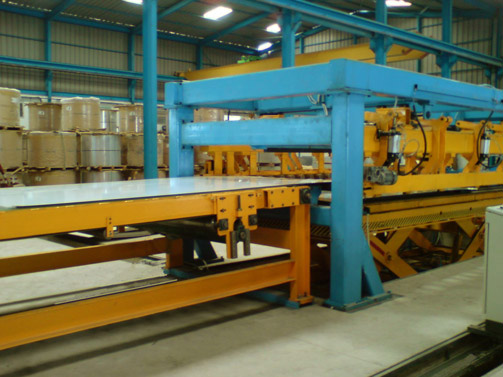

  • Inspection conveyor & Bomb-door Stacker for 2000 x 12 mm for stainless steel
    Inspection conveyor & Bomb-door Stacker for 2000 x 12 mm for stainless steel

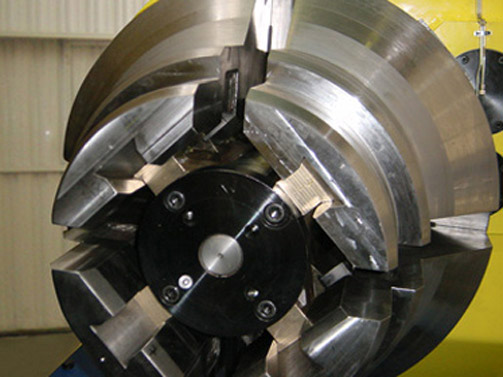

  • Detail of double decoiler for 40 t. and strip thickness of 15 mm
    Detail of double decoiler for 40 t. and strip thickness of 15 mm

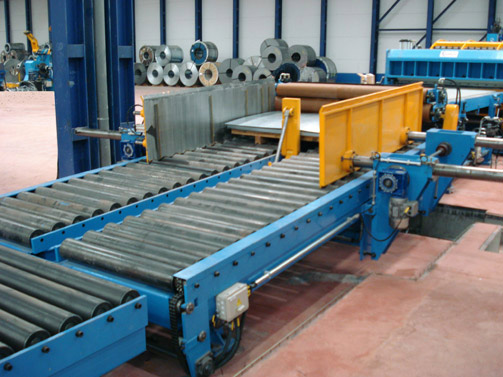

  • Slopping Stacker for 2000 x 3 mm
    Slopping Stacker for 2000 x 3 mm

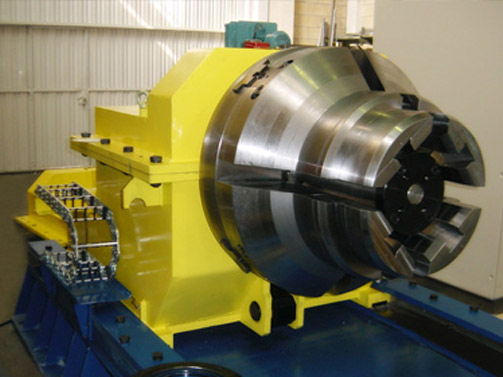

  • Double decoiler for 40 t. and strip thickness of 15 mm
    Double decoiler for 40 t. and strip thickness of 15 mm

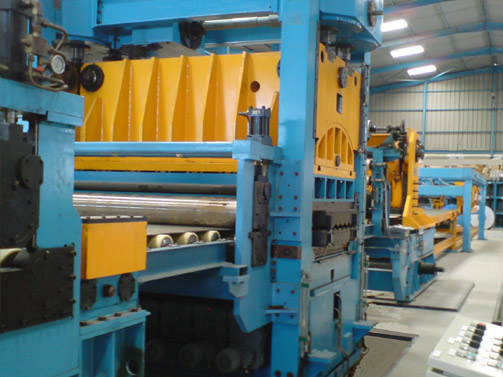

  • Precision Leveller for High Thickness for stainless strip of 2000 x 12 mm
    Precision Leveller for High Thickness for stainless strip of 2000 x 12 mm

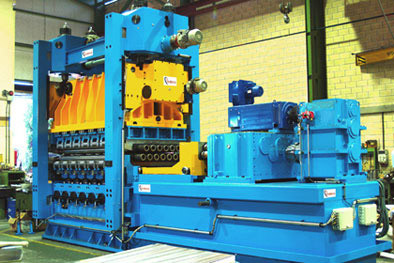

  • Precision Leveler for Stainless Steel 2000mm. x 10mm
    Precision Leveler for Stainless Steel 2000mm. x 10mm

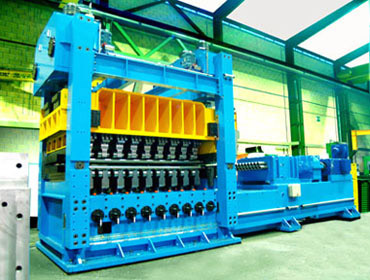

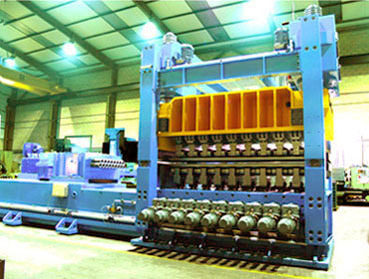

  • High Precision Leveler with Top Bridge on 4 balancing pivots. Stainless Steel. Width 2000 mm x 8 mm
    High Precision Leveler with Top Bridge on 4 balancing pivots. Stainless Steel. Width 2000 mm x 8 mm
  • High Precision Leveler with Top Bridge on 4 balancing pivots. Stainless Steel. Width 2000 mm x 8 mm
    High Precision Leveler with Top Bridge on 4 balancing pivots. Stainless Steel. Width 2000 mm x 8 mm

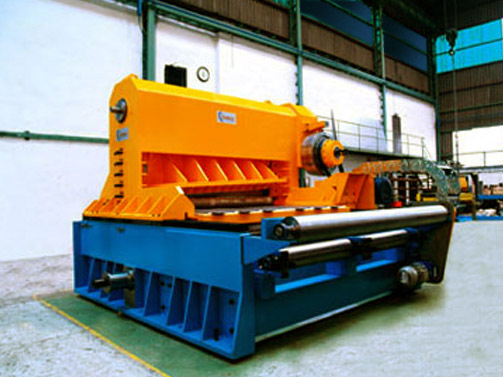

  • Flying Shear with Hydraulic Clutch for Stainless St. 2000mm x 10mm
    Flying Shear with Hydraulic Clutch for Stainless St. 2000mm x 10mm

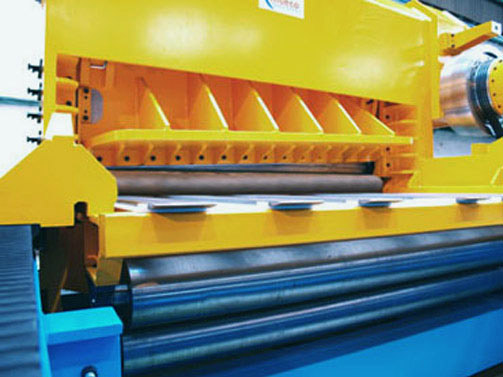

  • Flying Shear with Hydraulic Clutch for Stainless St. detail 2000mm x 10mm
    Flying Shear with Hydraulic Clutch for Stainless St. detail 2000mm x 10mm

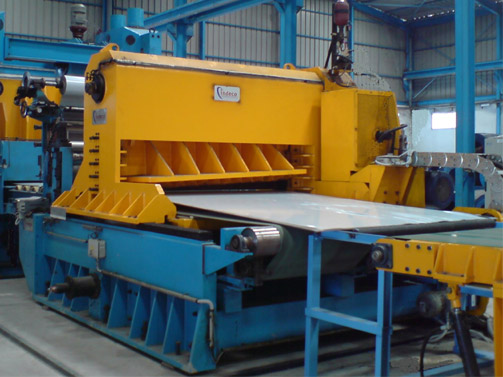

  • Flying Shear (50 m/min) for stainless steel strip 2000 x 3mm to 12 mm thicknesses
    Flying Shear (50 m/min) for stainless steel strip 2000 x 3mm to 12 mm thicknesses

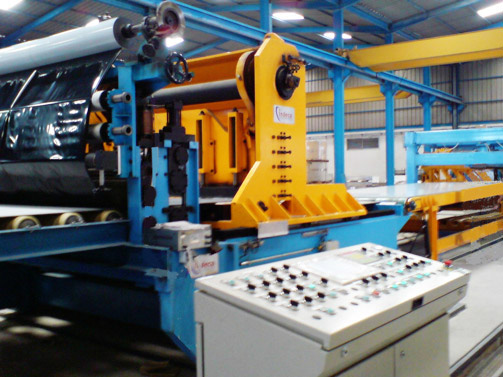

  • PVC Film Applicator + Flying Shear for stainless steel strip of 2000 x 12 mm
    PVC Film Applicator + Flying Shear for stainless steel strip of 2000 x 12 mm
Next
Line Parameters:
Coil weight up to 40 t.
Strip width up to 2100 mm and more.
Strip thickness from 0,10 up to 15 mm and more.
Production speed up to 140 m/min.
Production Capacity:
100.000 t/year and more than s/mix production.
Types of material:
Carbon Steel, stainless steel, aluminium, non ferrous metals and alloys.
Cold rolled, hot rolled, pickled, galvanized, dried, oiled, any coating and metals with sensitive surfaces.
Material strengths of more than 1200 N/mm² with yield up to 1000 N/mm².
Decoiler:
Coil inside diameter 508 and 610 mm and more.
Automatic coil height and in-line centering.
Automatic strip edge centering system.
Leveller:
Fully automatic cassette change up system.
Up to 23 levelling rolls in "four" and "six" highs design.
Presetting system for levellers.
Strip Marking:
Single or multi - strand marking.
From top or from bottom side of strip.
Paper or plastic foil application:
From top or from bottom side of strip.
Edge Trimmer:
With electric motor and automatic setting.

Cut-to-length shear.

Rotary Shear:
Cutting rate of 180 cuts/min.
Length tolerance of ▒ 0,2 mm.
Flying Shears:
Cutting rate of 50 m/min.
Length tolerance of ▒ 0,2 mm.
Eccentric Shear with feeder rolls:
Cutting rate of 140 cuts/min.
Length tolerance of ▒ 0,1 mm.
Swing Shears:
For trapezium shape formats.
Oscillation tolerance ▒ 30░.
Leveller feed & Eccentric Shear:
Cutting rate of 45 m/min.
Length tolerance of ▒ 0,2 mm.
Surface Protection:
Paper or foil aplication system for plate protection, from top or from below, for sensitive surfaces.
Special stacking systems for sensitive materials.
Vacuum stacker.
Magnetic belt stacker.
Stacking accurancy at length/width of ▒ 0,5 mm.
Stacks packaging without production interruption.

Other features:

  • Custom tailored high - medium - low of automation requirements.
  • Modem on-line teleservice.
