High Precision Levelers

Previous
  • High Precision Leveler of 3+3 highs for stainless steel strip of 2000 x 3 mm. Out Basket
    High Precision Leveler of 3+3 highs for stainless steel strip of 3 mm. thickness x 2000 mm width
  • High Precision Leveler for stainless steel
    High Precision Leveler for stainless steel of 2000 mm x 3 mm

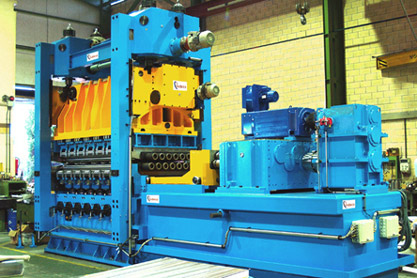

  • High Precision Leveler 3 +3
    High Precision Leveler 3 +3 for stainless steel band heights of 3 mm. Thickness x 2000 mm
  • Counter rolls motor drive for precision leveler stainless steel
    Counter rolls motor drive for precision leveler stainless steel 2000 mm. x 10 mm.

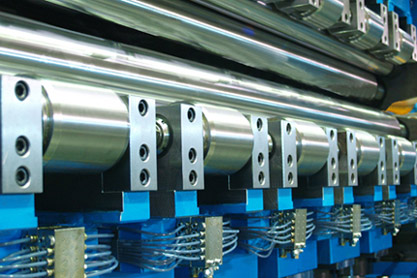

  • High Precision Leveler of 3+3 highs
    High Precision Leveler of 3+3 highs for stainless steel strip of 12 mm. Thickness x 2000 mm. width
  • High Precision Leveler of 3+3 highs
    High Precision Leveler of 3+3 highs for stainless steel strip of 12 mm. Thickness x 2000 mm. width
  • Precision Leveler for Stainless Steel
    Precision Leveler for Stainless Steel for 2000 mm x 10 mm
  • High Precision Leveler 3 +3
    High Precision Leveler 3 +3 for stainless steel band heights of 2000 mm. 12 mm thickness
  • High Precision Leveler of 3+3 highs
    High Precision Leveler 3 +3 for stainless steel band heights of 2000 mm. 12 mm thickness

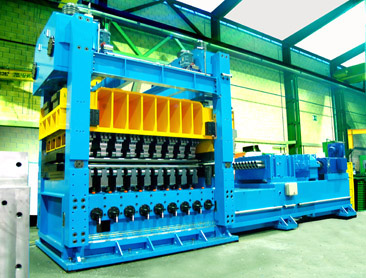

  • Counter rolls drive for High Precision Leveler for 2000 mm. x 8 mm.
    Counter rolls drive for High Precision Leveler for 2000 mm. x 8 mm.
  • High Precision Leveler of 3+3 highs
    High Precision Leveler of 3+3 highs

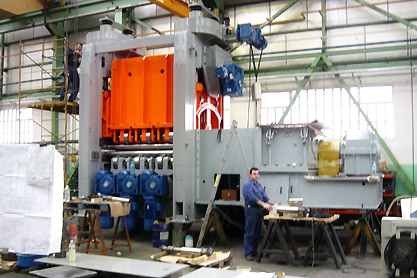

  • Leveler assembly for bands of 2000 x 25 mm thickness
    Leveler assembly for bands of 2000 x 25 mm thickness
  • Leveler assembly for bands of 2000 x 25 mm thickness
    Leveler assembly for bands of 2000 x 25 mm thickness
  • Motorization of precision leveler rolls
    Motorization of precision leveler rolls
Next

High Precision Leveler The high precision levelers are designed for cold and hot rolled sheets, plates and strips to fulfill highest flatness and surface protection requirements.

Strip materials in carbon steel, stainless steel, copper, aluminium and high gloss surface aluminium, and high tensile strengths tungsten and molybdenum alloys.

Typical range of application:

  • Strip thickness between: 0,2 mm up to 13 mm. (max. 20 mm)
  • Strip width: max. 2500 mm. and more.
  • Yield: 750 N/mm2.
  • Leveling speed: 120 m/min.
High Precision Leveler detail High Precision Leveler detail High Precision Leveler detail

Leveler Configuration in "four - highs" and "six - highs" design.

Cassette changing systems: Manual, Semi-automatic and Automatic change over devices.

High Precision Leveler detail

A system programme enable setting the leveler to strip metal characteristics and required flatness.

Set-up parameters including: Rolls diameter, metal specs, surface quality and intermediate and back up rolls configuration.

The cassette settings can be established automatically, preset and recorded.

The rolls cassette can be exchange fully automatically and the storage system can be equipped with 2 or 3 leveling sets.

The estimate change over time is about 13 minutes.

Levelers can be fitted with a flatness measuring system for quality assurance and quality improvement.

The measured values for leveler adjustment are: Cross section and Span.

Leveler adjustment motions

  • Leveler schema
  • Tilting motion upright to sheet working direction and driven by screw jacks and electric a.c. motors.
  • Leveler schema
  • Tilting motion on the sheet working direction driven by electric a.c. motors.

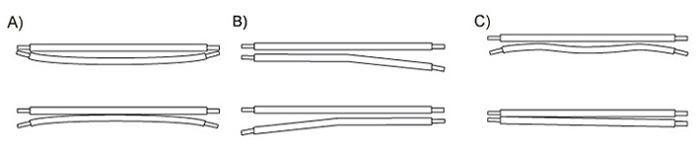

Deformation of the lower rollers

Leveler schema

Lower rolls can be bent, as shown, for leveling the metal working sheet, by means of pressure of the counter rolls.

Metal coil slitting, cut to length lines and packaging and stacking lines
