Mid Production Slitting Line, 600 SL type

Previous
  • Mid Production Slitting Line, 600 SL type
    Mid Production Slitting Line, 600 SL type

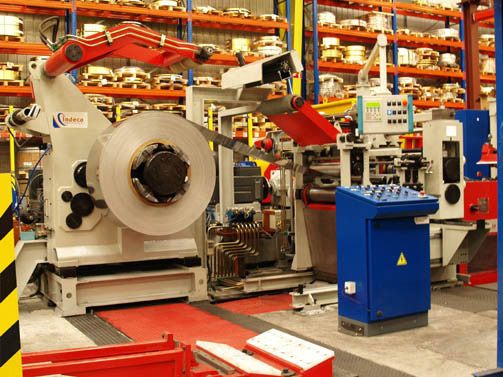

  • Decoiler for stainless strip 600x3 mm
    Decoiler for stainless strip 600x3 mm

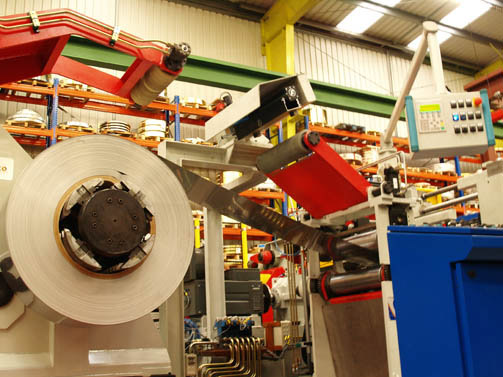

  • Decoiler & Fully automatic Strip centring system for stainless strip 600x3 mm
    Decoiler & Fully automatic Strip centring system for stainless strip 600x3 mm

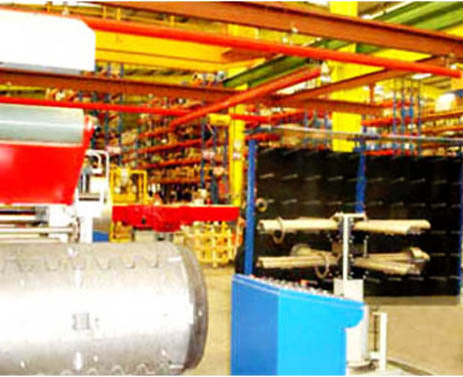

  • Slitter with foil applicator system for 600 mm. x 0,1 - 3 mm. x 350 m/min - Stainless/Aluminium/Cu/Brass.
    Slitter with foil applicator system for 600 mm. x 0,1 - 3 mm. x 350 m/min - Stainless/Aluminium/Cu/Brass.

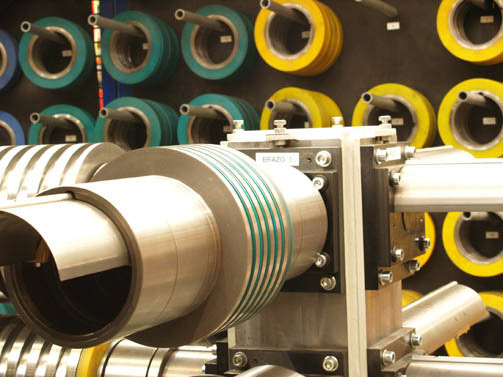

  • Detail of Semi-Automatic tooling change over system on Slitter for stainless strip 600x3 mm.
    Detail of Semi-Automatic tooling change over system on Slitter for stainless strip 600x3 mm.

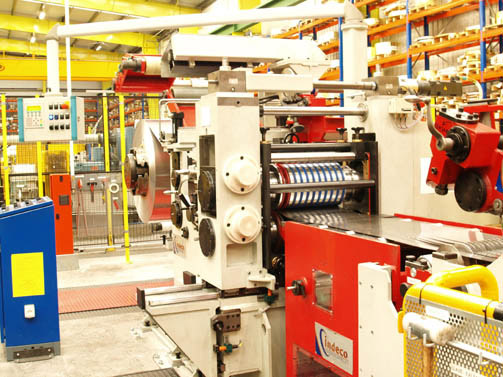

  • Slitter for stainless steel strip 600x3 mm
    Slitter for stainless steel strip 600x3 mm

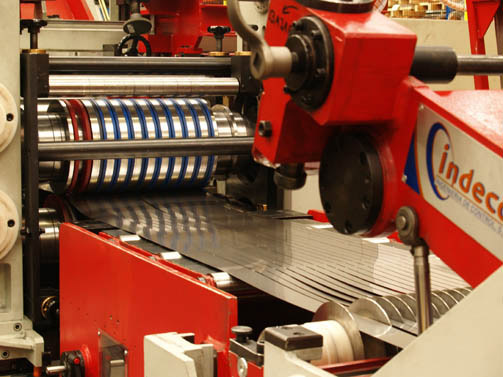

  • Detail of Slitter for stainless strip 600x3 mm
    Detail of Slitter for stainless strip 600x3 mm

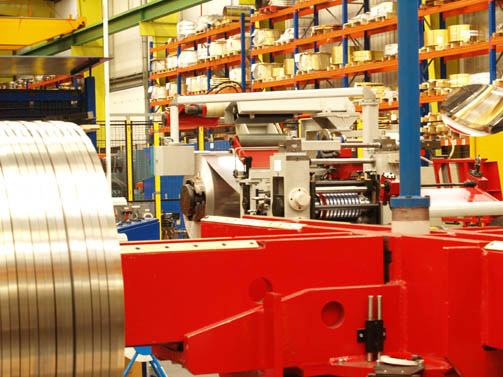

  • Detail of Recoiler with 04 arms Capstan for stainless strip 600x3 mm
    Detail of Recoiler with 04 arms Capstan for stainless strip 600x3 mm

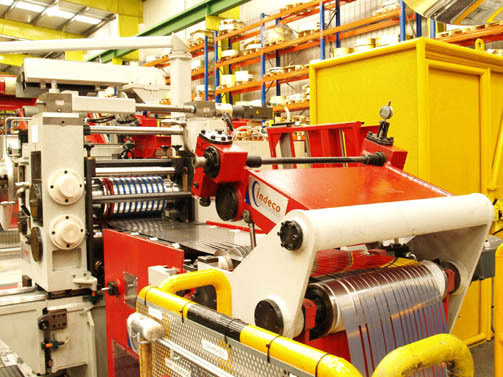

  • Slitter & set of bridle rolls & Inlet Basket for stainless strip 600x3 mm
    Slitter & set of bridle rolls & Inlet Basket for stainless strip 600x3 mm

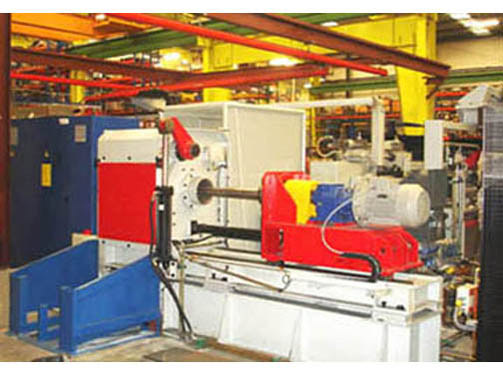

  • Hydraulic Scrap baler.  Thickness 0.1-3 mm x 350 m/min - Stainless/Aluminium/Cu/Brass.
    Hydraulic Scrap baler. Thickness 0.1-3 mm x 350 m/min - Stainless/Aluminium/Cu/Brass.

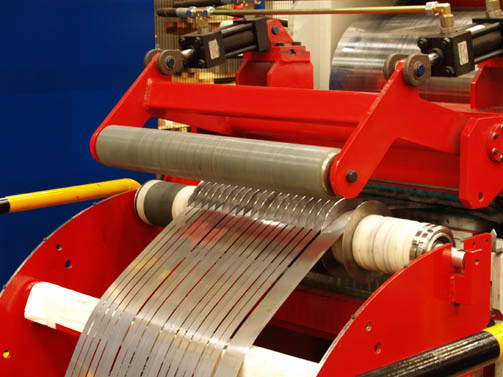

  • Outlet Basket & Splitting discs for stainless strip 600x3 mm
    Outlet Basket & Splitting discs for stainless strip 600x3 mm

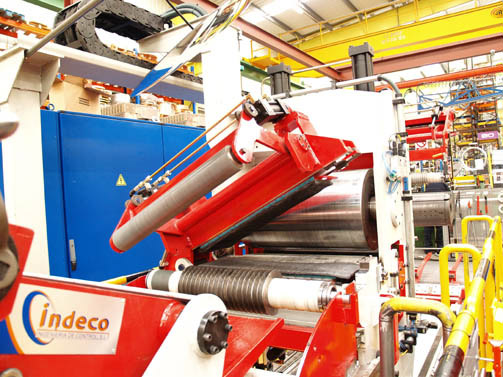

  • Drag Pad press & Displaceable Tension Unit for stainless strip 600x3 mm
    Drag Pad press & Displaceable Tension Unit for stainless strip 600x3 mm

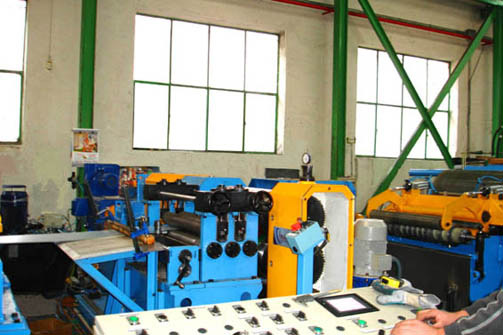

  • Evener Rolls & Slitting shear for stainless strip 600x3 mm
    Evener Rolls & Slitting shear for stainless strip 600x3 mm

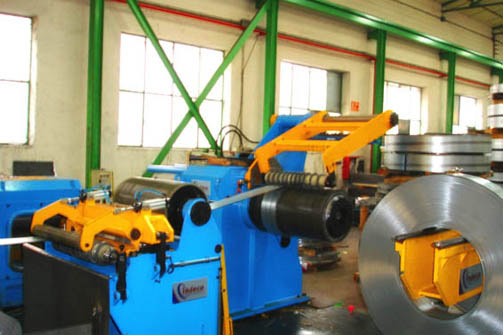

  • Displaceable Tension unit & Recoiler & Capstan for stainless strip 600x3 mm
    Displaceable Tension unit & Recoiler & Capstan for stainless strip 600x3 mm

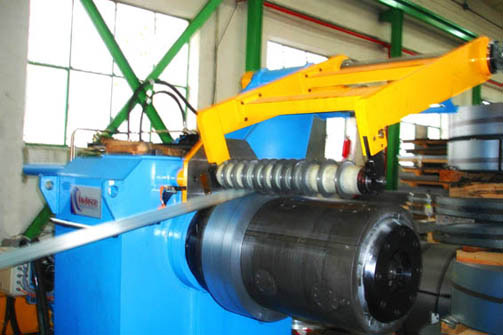

  • Recoiler & Splitter discs for Slitter 600x3 mm
    Recoiler & Splitter discs for Slitter 600x3 mm

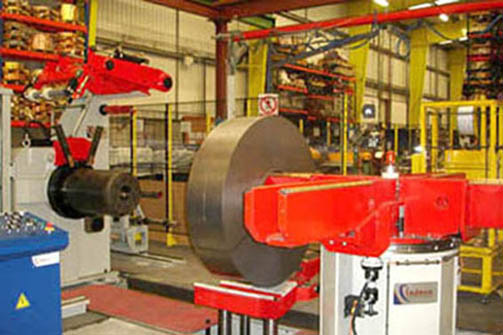

  • Four arms capstan for recoiler unit
    Four arms capstan for recoiler unit

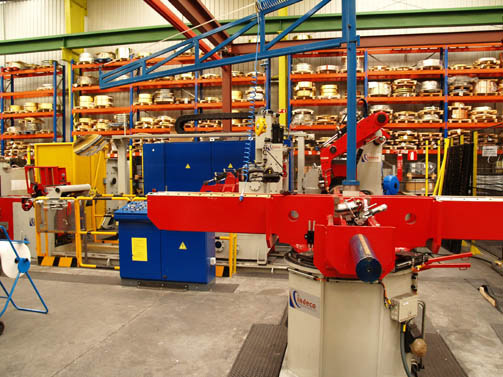

  • 04 Arms Capstan for Recoiler for stainless 600x3 mm
    04 Arms Capstan for Recoiler for stainless 600x3 mm

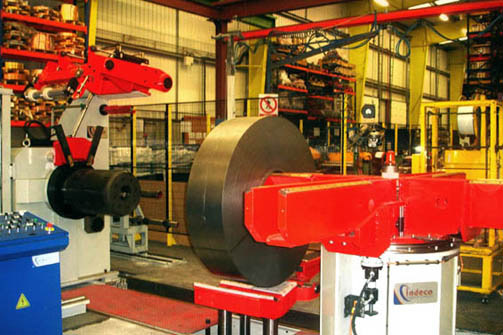

  • Recoiler & Capstan for coils 600x3 mm
    Recoiler & Capstan for coils 600x3 mm

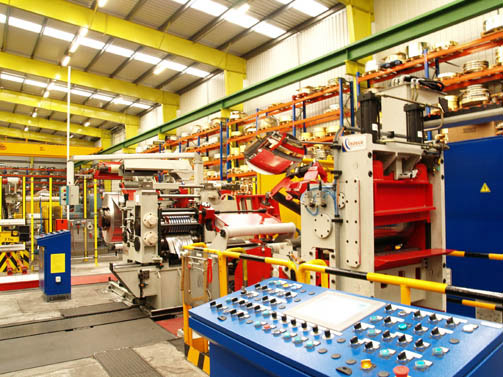

  • Slitter for stainless strip 600x3 mm
    Slitter for stainless strip 600x3 mm

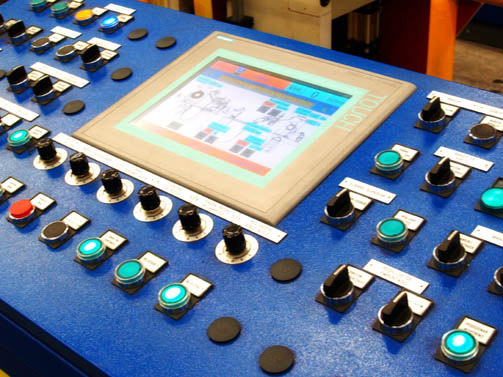

  • Control Desk with Touch Screen for Slitter 600x3 mm and speed of 300 m/min
    Control Desk with Touch Screen for Slitter 600x3 mm and speed of 300 m/min

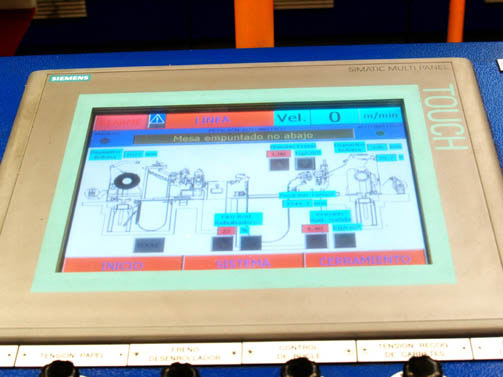

  • Detail of Touch Screen for Slitter 600x3 mm
    Detail of Touch Screen for Slitter 600x3 mm

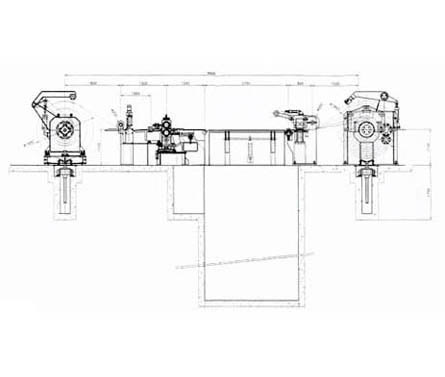

  • Mid Production Slitting Line 600 SL type
    Mid Production Slitting Line 600 SL type
Next

This is an optimised Slitting Line with a modular basic design on which can add and fit options for increasing production capacity and performance characteristics of the Line, according customer's specifications and requirements.

This modular design is applied so for mechanical components as for electronics because an integrated "in house" construction, made inside CIMISA's plant.

All control systems are manufactured with elec. standard components, available in the market permitting an easy replacement for maintenance services anywhere at anytime. The main advantage of this "MAX" type modular design for the customer is a present low investment, for a High Quality and Performance Line and a future step by step development according production requirements.

Line Production Parameters for a Slitting Line 600 SL type:

Type of material to be processed:
Carbon steel, Stainless Steel, Aluminium, Non ferrous metals and alloys.
Cold and hot rolled, pickled, dry or oiled, galvanized and coatings.

Mechanical characteristics:

  minimum maximum
Material strength N/mm▓ 350 600
Yield point N/mm▓ 280 350

Material:

minimum maximum
Range of strip widths mm - 600
Range of strip thikness mm 0,3 4
Range of coils O.D. mm 508 610
Coil weight t - 8

Slitting line general specifications:

Processing speeds:

Strip Threading speed - mts/min 15
Line Speed N╣ 1 mts/min 0-120

Traction (Unwinding / Winding)

Strip width maximum mm Line speed mts/min Tension in kg
Unwind Recoiling
600 x 4 120 360 2000

Line Design:

Metal Strip Width (mm) Line speed mts/min Line type
600 x 4 120 One loop

Board of Production:

Material: σ R = 600 N/mm▓

σ R N/mm▓ Thickness mm 0,3 0,5 0,8 1 1,5 2 2,5 3 4
600 N║ of Strips N║ 30 24 20 18 12 10 8 6 3
Production speed mts/min 120
450 N║ of Strips N║ 30 30 26 24 18 14 11 8 4
Production speed mts/min 120
350 N║ of Strips N║ 30 30 30 30 20 18 15 12 6
Production speed mts/min 120

Recoiling specifications:

    minimum maximum
Range of strip widths mm 20 600
Range of coils O.D. mm 0,3 4
Range of coils O.D. mm - 1850
Coils I.D. mm - 508
Coils weight t - 8

Future options:

  • Unwind coil car
  • Scrap shearing
  • Increase line speed up to 240 m/min
  • Fully automatic slitter change

Electric Parameters:

  10% 5%
Power Elec. current 380 V. 50 Hz.
Auxiliary Elec. current 110 V. 50 Hz.
Solenoid valves Elec. current 110 V. 50 Hz.

Compressed air

Air Pressure 5 bars.

Hydraulic power pack

Nominal pressure 100 bars.
Max. pressure 110 bars.
Cooling system by Air

Climatic condition

  minimum maximum
Outdoor temperature -6║ C +44║ C
Indoor temperature +5║ C +40║ C
