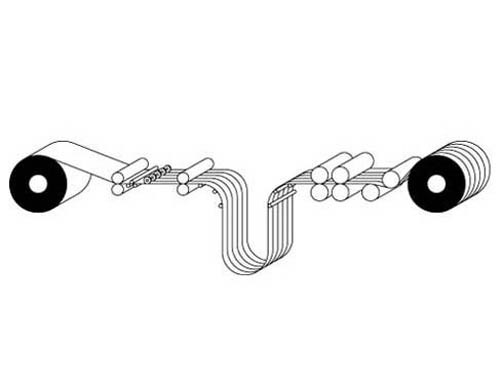

  • Production Slitting Line, 1500 SL
    Production Slitting Line, 1500 SL

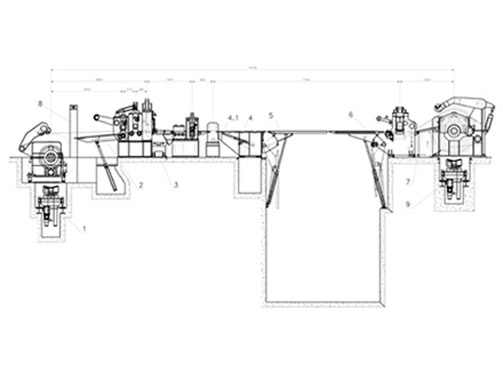

  • Production Slitting Line, 1500 SL
    Production Slitting Line, 1500 SL

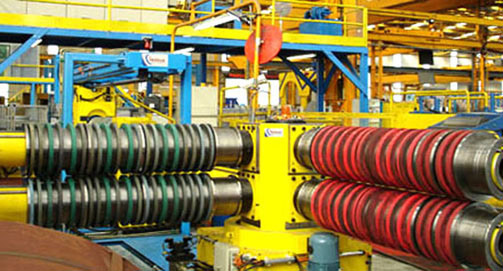

  • Slitter automatic tool change
    Slitter automatic tool change

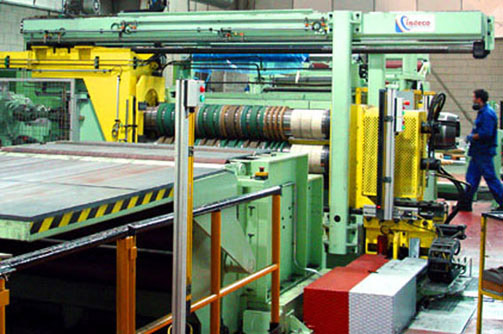

  • Slitting line for stainless steel of 1500 mm x 4 mm x 150 m/min
    Slitting line for stainless steel of 1500 mm x 4 mm x 150 m/min

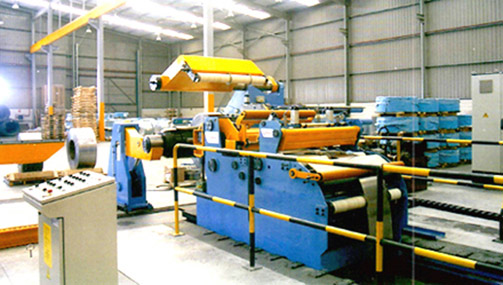

  • Tension unit for slitting line
    Tension unit for slitting line

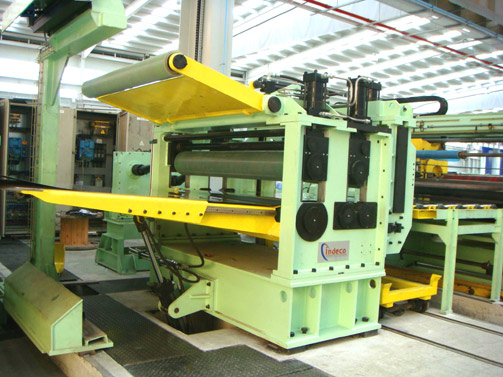

  • Peeler & Bridle Rolls & Straightener for stainless strip 1500 x 3 mm
    Peeler & Bridle Rolls & Straightener for stainless strip 1500 x 3 mm

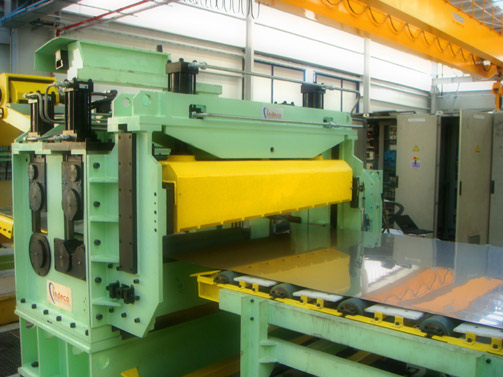

  • Crops Shear for stainless strip 1500 x 3 mm
    Crops Shear for stainless strip 1500 x 3 mm
  • Recoiler unit for slitting line
    Recoiler unit for slitting line

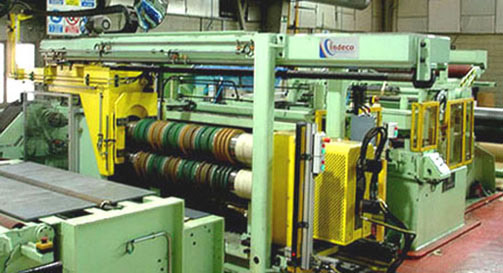

  • Mid Production Slitting Line 1500 mm x 3 mm x 150 m/min
    Mid Production Slitting Line 1500 mm x 3 mm x 150 m/min

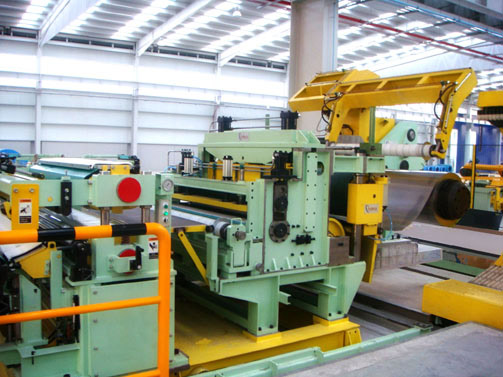

  • Tensor de Correas & Tensor Desplazable para Slitter Inox. 1500x3 mm
    Tensor de Correas & Tensor Desplazable para Slitter Inox. 1500x3 mm

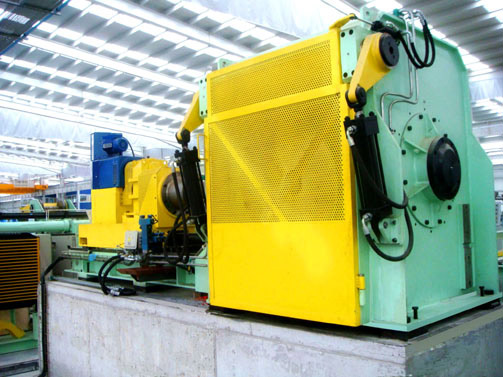

  • Rotary Belt Bridle & Displaceable Tension unit for Slitter for stainless strip 1500 x 3 mm
    Rotary Belt Bridle & Displaceable Tension unit for Slitter for stainless strip 1500 x 3 mm
  • Scrap Baller for Slitter for stainless strip 1500 x 3 mm
    Scrap Baller for Slitter for stainless strip 1500 x 3 mm

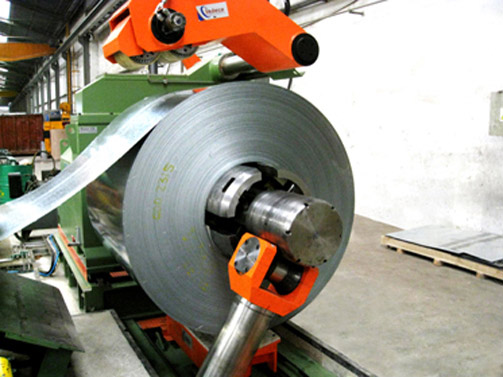

  • Slitting line 1250 mm x 0.1 - 3 mm. Speed 350 m/min. Steel sheet, prepainted.
    Slitting line 1250 mm x 0.1 - 3 mm. Speed 350 m/min. Steel sheet, prepainted.

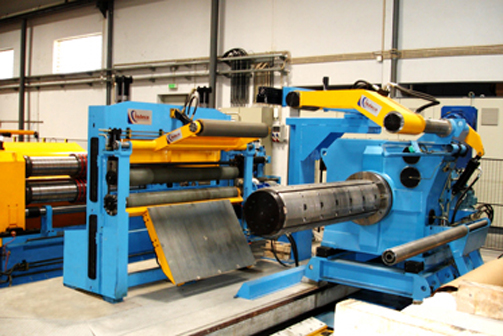

  • Hydraulic unwinding. Automatic coil centering. Power supply unit. Stainless Steel. 1500 mm x 3 mm - Speed 150 m/min.
    Hydraulic unwinding. Automatic coil centering. Power supply unit. Stainless Steel. 1500 mm x 3 mm - Speed 150 m/min.

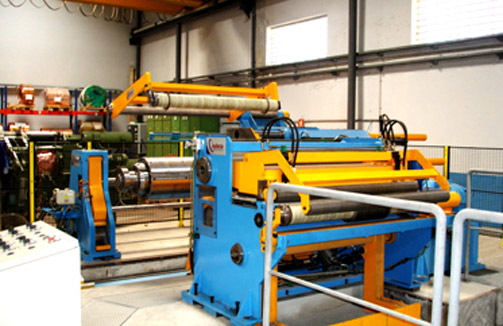

  • Unit fixed voltage. Slitting line 1500 x 3 mm x 150 m / min. Stainless Steel.
    Unit fixed voltage. Slitting line 1500 x 3 mm x 150 m / min. Stainless Steel.

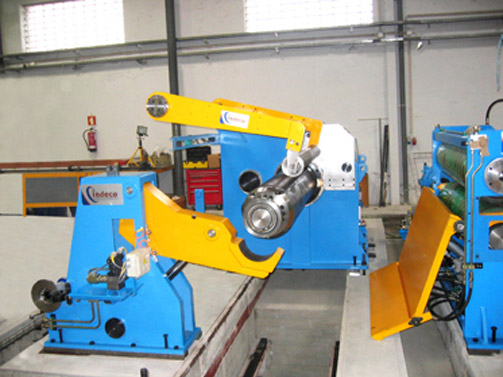

  • Mid Production Slitting Line  (1500 x 3 mm x 150 m/min)
    Mid Production Slitting Line (1500 x 3 mm x 150 m/min)

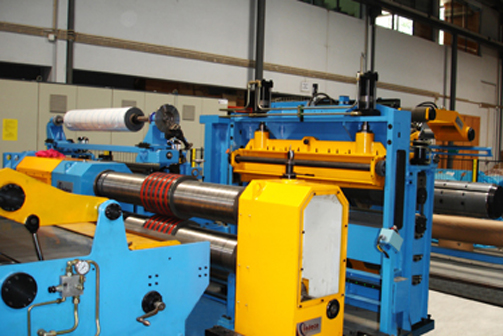

  • Mid Production Slitting Line 1500 x 3 mm x 150 m/min. Trim for Inox
    Mid Production Slitting Line 1500 x 3 mm x 150 m/min. Trim for Inox

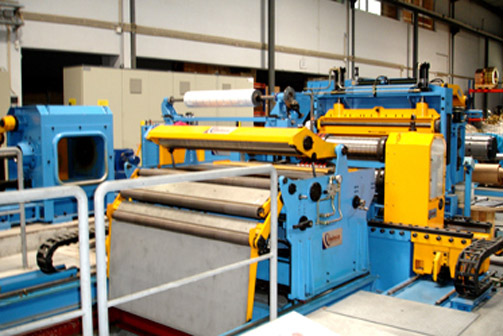

  • Traction roller set. Roller deburring. Unwinding foil slitting line. 1500 mm x 3 mm Speed 150 m/min
    Traction roller set. Roller deburring. Unwinding foil slitting line. 1500 mm x 3 mm Speed 150 m/min
Next

This is an optimised Slitting Line with a modular basic design on which can add and fit options for increasing production capacity and performance characteristics of the Line, according customer's specifications and requirements.

This modular design is applied so for mechanical components as for electronics because an integrated "at home" construction, made inside CIMISA Mecanizados.

All control systems are manufactured with elec. standard components, available in the market permitting an easy replacement for maintenance services anywhere at anytime.

Line Production Parameters for a Slitting Line 1500 SL type:

Type of material to be processed:
Carbon steel, Stainless Steel, Aluminium, Non ferrous metals and alloys.
Cold and hot rolled, pickled, dry or oiled, galvanized and coatings.

Type of material to be processed:

  minimum maximum
Material strength N/mm▓ 450 900
Yield point N/mm▓ 280 600

Coil characteristics:

minimum maximum
Strip width mm 500 1500
Strip thickness mm 0,3 3
Coil O.D. mm 800 1500
Coil I.D. mm 508 / 610
Coil weight t - 10

(*) Ø int. 610 mm supplement plain elastic

Slitting line general specifications:

Processing speeds:

Strip Threading speed - mts/min 15
Line Speed N╣ 1 m/min 0-100

Tensioning units (Unwind/Recoiling):

Strip width max. mm Line speed m/min Tension in Kg.
Unwind Recoiling
1500 x 3 100 900 4000

Line Design:

Unwinding band from top-down or bottom up.

Metal Strip Width (mm) Line speed m/min Line type
1500 x 3 100 One loop

Board of Production:

Material: σ R = 600 N/mm²

Thickness mm 0,3 0,5 1 1,5 2 2,5 3
N║ of Strips N║ 30 30 15 12 10 8 6
Production speed m/min 100

Material: Σ R= 900 N/mm²

Thickness mm 0,3 0,5 1 1,5 2 2,5 3
N║ of Strips N║ 18 14 8 6 5 4 3
Production speed m/min 100

Recoiling specifications:

    minimum maximum
Range of strip widths mm 20 1500
Range of strip thikness mm 0,3 3
Coil O.D. mm 800 1500
Coil I.D. mm 508 508
Range of coils O.D. t - 10

(*) ě 508 supplement plain elastic.

Electric Parameters

  ▒10% ▒5%
Power Elec. current 380 V. 50 Hz.
Auxiliary Elec. current 110 V. 50 Hz.
Solenoid valves Elec. current 110 V. 50 Hz.

Compressed air

Air Pressure 5 bars.

Hydraulic power pack

Nominal pressure 100 bars.
Max. pressure 110 bars.
Cooling system by Air

Climatic condition

  minimum maximum
Outdoor temperature -6║ C +44║ C
Indoor temperature +5║ C +40║ C
